CellPurics' analytical support services optimize the experimental design to meet customer's experimental objectives
and provide reliable results using validated test methods.

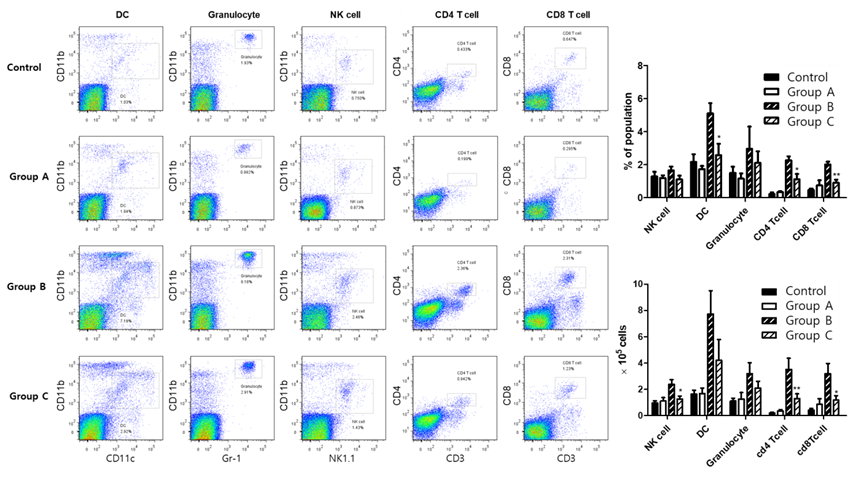

As a test method that analyzes the physicochemical properties of cells by irradiating fluid cells with a laser, flow cytometry is often used
to analyze molecules expressed on the cell surface and inside cells.
- Blood, lymph nodes, spleen
- Tumor tissues (TIL, TAM analysis)
- Skin, brain, and liver tissues

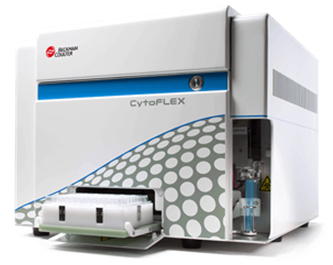

Beckman Coulter
CytoFLEX S Flow Cytometer (4 Laser, 13 Color)
We offer specialized and personalized consulting to get optimal results for the analysis of flow cytometry.
| Laser | Fluorescent Channel | CytoFLEX Channel Names | Commonly used Fluorescent Dyes |
|---|---|---|---|
| 405 nm | 450/45 | PB450 | Pacific Blue, eFluor 450, BV421 |
| 525/40 | KO525 | AmCyan, V500, BV510 | |
| 610/20 | Violet610 | BV605, Qdot 605 | |
| 660/10 | Violet660 | V650, Qdot 655 | |
| 408 nm | 525/40 | FITC | FITC, Alexa Fluor 488, CFSE |
| 690/50 | PC5 | PerCP, PerCP-Cy5.5, PI | |
| 561 nm | 585/42 | PE | PE |
| 610/20 | ECD | PE-Texas Red, PE-CF594 | |
| 690/50 | PC5.5 | PE-Cy5.5, PE-Cy5 | |
| 780/60 | PC7 | PE-Cy7, DRAQ7 | |
| 638 nm | 660/10 | APC | APC, Alexa Fluor 647, eFluor 660 |
| 712/25 | APC-A700 | APC-A700, Alexa Fluor 700 | |
| 780/60 | APC-A750 | APC-Cy7, APC-H7, APC- eFluor 780 |
